Pre weathered corten metal cassette panel

Pre weathered corten metal cassette panel is very convenient to install, the size can be customized, the appearance is beautiful and generous, and it shows the characteristics of individuality. Therefore, it is videly used in various offices,entertainment, home workshops, apartments, parks and other buildings.

Materials: Corten A/SPA-H

Thickness: 1.5mm,2.0mm, 3.0mm,5.0mm

Panel Depth: 20mm-30mm

Joint: Vertical:20mm,

Horizontal: 20mm(15mm and 25mm also are usable )

Panel Dimensions:

Visible Height                                          Visible Length

(joint excluded)                                        (joint excluded)

220 to 600 mm                                        200 to 4000 mm

601 to 700 mm                                        200 to 3000 mm

701 to 875 mm                                        200 to 2000 mm

Areas of Application:

Areas of application: Vertical walls (slope 90°) and soffits.

Type of building: New construction or renovation.

Supporting structure: Concrete wall, brickwork, metal as main support.

Features of Pre weathered corten metal cassette panel:

1.Best flatness.

2.Horizontal layout

3.The cassettes fixed by hidden clips screwed to the framework.

Installation of Pre weathered corten metal cassette panel:

Before any installation, a detailed layout plan should be drawn by the contractor in order to:

1.Establish the positioning of the secondary framework elements.

2.Calculate the exact measurements and quantity of cassettes (centre to centre height and length and the width of the joint).

3.Position the fastening accessories (clips and screws) and framework rails.

Fixing of Pre weathered corten metal cassette panel:

Fixing clips are specially designed and tested to meet the design and performance criteria of the project. Clips have a dual function:

I.Ensuring the lift-up resistance of the cladding

II.Allowing free expansion of the metal

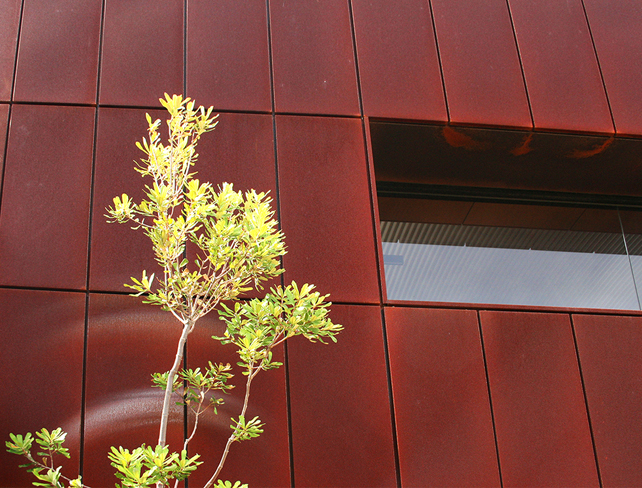

pre weathered corten metal cassette panel
