Weathering corten steel corrugated RIB Panel

Weathering corten steel corrugated RIB Panel wall cladding for building,house,willa,hotel,roof and so on.

Materials: Corten A/SPA-H

Thickness: 1.5mm---3.0mm

Panel width: 600mm

Height: 38mm

Length: 300-6000mm

Rib Distance: 180mm

Available Gauges: 20mm, 22mm, 24mm.

Fixing: Concealed fasteners.

Areas of Application:

Areas of application: Vertical walls (slope 90°) and house roof slope:3/12.

Type of building: New construction or renovation.

Supporting structure: Concrete wall, brickwork, metal as main support.

Installation: Over a solid substrate.

Remark: Screws and clips for corten better use stainless steel and screw head painted brown color.

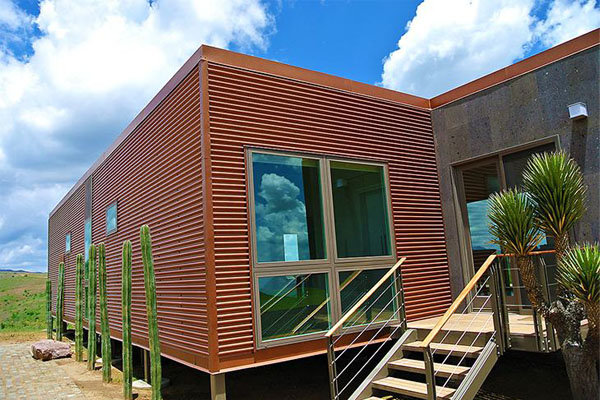

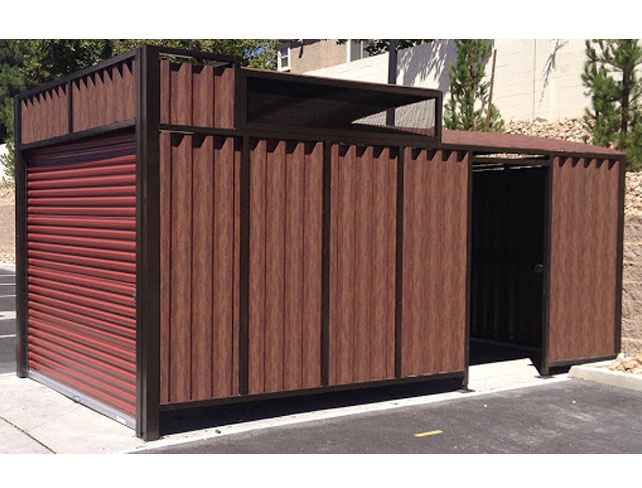

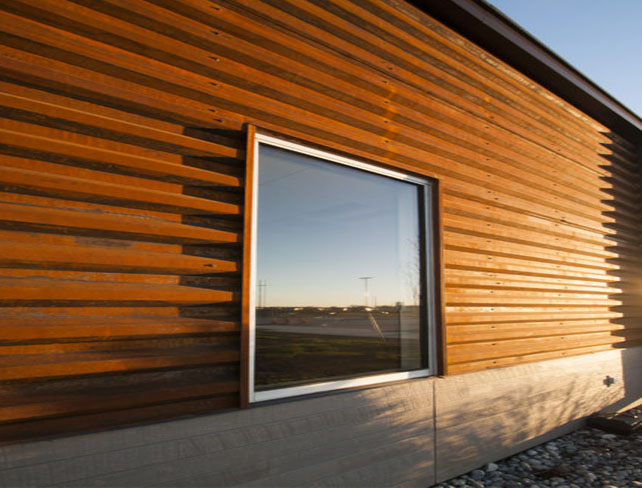

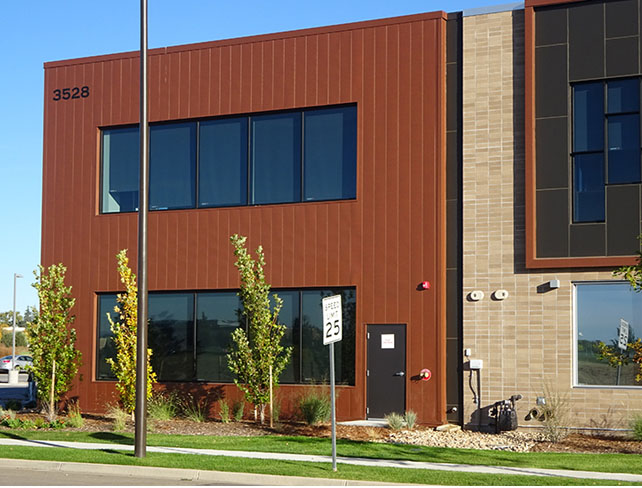

Case as reference:

weathering corten steel RIB wall cladding panels
